The Beginner's Guide to Three-Point Lighting for Headshots and Portraits (With DIY Budget Options)

Studies show it takes just 100 milliseconds to form a first impression from a photo. One tenth of a second. In that blink, a viewer decides whether you look trustworthy, competent, and approachable, and lighting is the single biggest factor that separates a polished headshot from an amateur snapshot.

You've seen those gorgeous, studio-quality portraits on LinkedIn and actor portfolios. You've probably assumed they required thousands of dollars in gear, a rented studio, and a professional photographer barking "turn your chin left." The truth? The foundational technique behind nearly every professional portrait was codified in Hollywood back in the 1930s. It's called three-point lighting, and you can replicate it with a desk lamp, a foam board from the dollar store, and a sunny window.

This guide walks you through exactly how to set up key, fill, and back lights for flattering headshots at home. You'll learn what mistakes to avoid, how to troubleshoot bad skin tones, and when it might make sense to skip the DIY route entirely and let AI handle the heavy lifting.

What Is Three-Point Lighting (and Why Does It Matter for Headshots)?

Three-point lighting is exactly what it sounds like: three separate light sources, each with a specific job, arranged around your subject.

• Key light: Your primary, brightest light source. It determines the overall exposure and casts the main shadows that define your subject's features.
• Fill light: A softer, less intense light positioned opposite the key. Its job isn't to erase shadows but to reduce contrast so the dark side of the face still shows detail.
• Back light (also called a rim or hair light): Positioned behind and above the subject, this creates a subtle glow around the outline of the head and shoulders, separating the person from the background.

The interplay of these three sources creates depth and dimension that a single light source simply cannot achieve. That's why this setup has been the gold standard for portraits since the golden age of cinema. It sculpts the face in three dimensions, flatters bone structure, and draws the viewer's eye exactly where you want it.

One important distinction before we move on: hard light (think bare bulb, direct sun) creates sharp, dramatic shadows. Soft light (think overcast sky, diffused lamp) wraps gently around the face with gradual shadow transitions. For headshots and professional portraits, soft light is almost always the better choice. It's more forgiving on skin texture and more universally flattering.

And this isn't just about aesthetics. Research from Princeton (Willis & Todorov) and York University has shown that well-lit headshots are perceived as more trustworthy, competent, and approachable. Lighting your face properly is a career-relevant skill, whether you're updating your LinkedIn or building an acting portfolio.

Setting Up Your Key Light: The Foundation of Every Great Portrait

The key light does the most work. Get this right, and you're already 70% of the way to a professional-looking portrait.

Position it 30 to 45 degrees to one side and slightly above eye level. This angle creates the classic Rembrandt lighting pattern: a small triangle of light on the cheek opposite the light source. That triangle should be no wider than the eye and no longer than the nose. It's subtle, but it immediately adds dimension and a sense of depth to the face.

For a DIY setup, you have two excellent options:

1. A bright LED desk lamp (5000K daylight-balanced) with a white bedsheet or shower curtain taped in front as a diffuser. The fabric scatters the light, turning a harsh point source into something that mimics a professional softbox.
2. A large window with sheer curtains. This is nature's softbox. Position your subject 1 to 2 feet from the window and rotate them about 45 degrees toward the light for a beautiful Rembrandt or loop pattern.

Here's a practical physics tip that professionals use constantly. The inverse square law sounds intimidating, but the takeaway is simple: moving the light closer to your subject makes it relatively larger and softer, with more gradual shadow transitions. Moving it farther away makes it relatively smaller and harder, with sharper shadows. For headshots, closer is usually better.

Common mistake #1: Placing the key light directly in front of and level with the face. This flattens every feature and creates the dreaded "passport photo" look. Always offset the angle.

Quick tip: Have the subject turn their nose slightly toward the key light. This ensures both eyes pick up catchlights (those small reflections that make eyes look alive) and prevents harsh split lighting where one half of the face falls into total shadow.

Adding Fill Light: Taming Shadows Without Killing Dimension

The fill light is your shadow manager. Without it, the side of the face opposite the key light can fall into deep, unflattering darkness. With too much fill, you lose all that dimensional sculpting you just created.

The cheapest fill light in the world? A white foam board. You can pick one up for $1 to $3 at any dollar or craft store. Position it opposite the key light, angled to bounce light back into the shadow side of the face. It produces soft, neutral light that won't introduce any color shift.

Let's talk fill ratios in plain terms:

• 2:1 ratio (one stop difference between the lit and shadow sides): Feels natural, flattering, and balanced. This is the sweet spot for most headshots.
• 4:1 ratio (two stop difference): More dramatic and moody, with noticeable shadows. Great for actors or creative portraits.
• 1:1 ratio (equal brightness on both sides): Flat and shadowless. Rarely what you want for a headshot.

You can eyeball this without a light meter. Just look at the shadow side of the face. Can you see detail and skin texture? Good, that's roughly 2:1. Are the shadows deep and contrasty but not black? That's closer to 4:1.

Common mistake #2: Using a fill light that's a different color temperature than the key. A warm tungsten desk lamp on one side and cool window light on the other will create mixed-color shadows that make skin tones look sickly, almost greenish. Make sure your sources match.

DIY alternative: If you don't have a reflector, a white wall in a small room naturally acts as fill. Shooting in a bathroom or small office can be surprisingly effective because the walls bounce light from every direction.

The Back Light: The Secret Weapon Most Beginners Skip

This is where beginners usually stop. They set up a key and fill, take the shot, and wonder why it still looks a bit flat. The missing ingredient is almost always the back light.

Without rim light, the subject's hair and shoulders blend into the background, especially if both are dark. The image looks muddy and two-dimensional. A back light fixes this instantly by creating a thin line of brightness along the subject's outline.

Positioning: Place the light behind and above the subject, roughly 3 feet above their head, angled down at about 45 degrees. It should create a subtle rim or halo on the hair and shoulders without spilling onto the face.

For DIY, grab a clamp light from the hardware store ($10 to $15 with an LED bulb). Mount it on a tall shelf, clamp it to a door frame, or even tape it to the back of a chair positioned behind your subject. In a real pinch, a phone flashlight propped at the right angle can work.

Common mistake #3: Making the back light too bright relative to the key. This creates an overexposed "angel halo" effect or, worse, lens flare. The rim should be subtle. A good rule of thumb: set the back light equal to or slightly lower in power than the key. For blonde hair, go 2 to 3 stops below the key to avoid blowing out highlights. For dark hair, keep it closer to 1 stop below.

The difference is striking. That thin edge of light along the shoulders and hair is what makes a headshot look polished and three-dimensional.

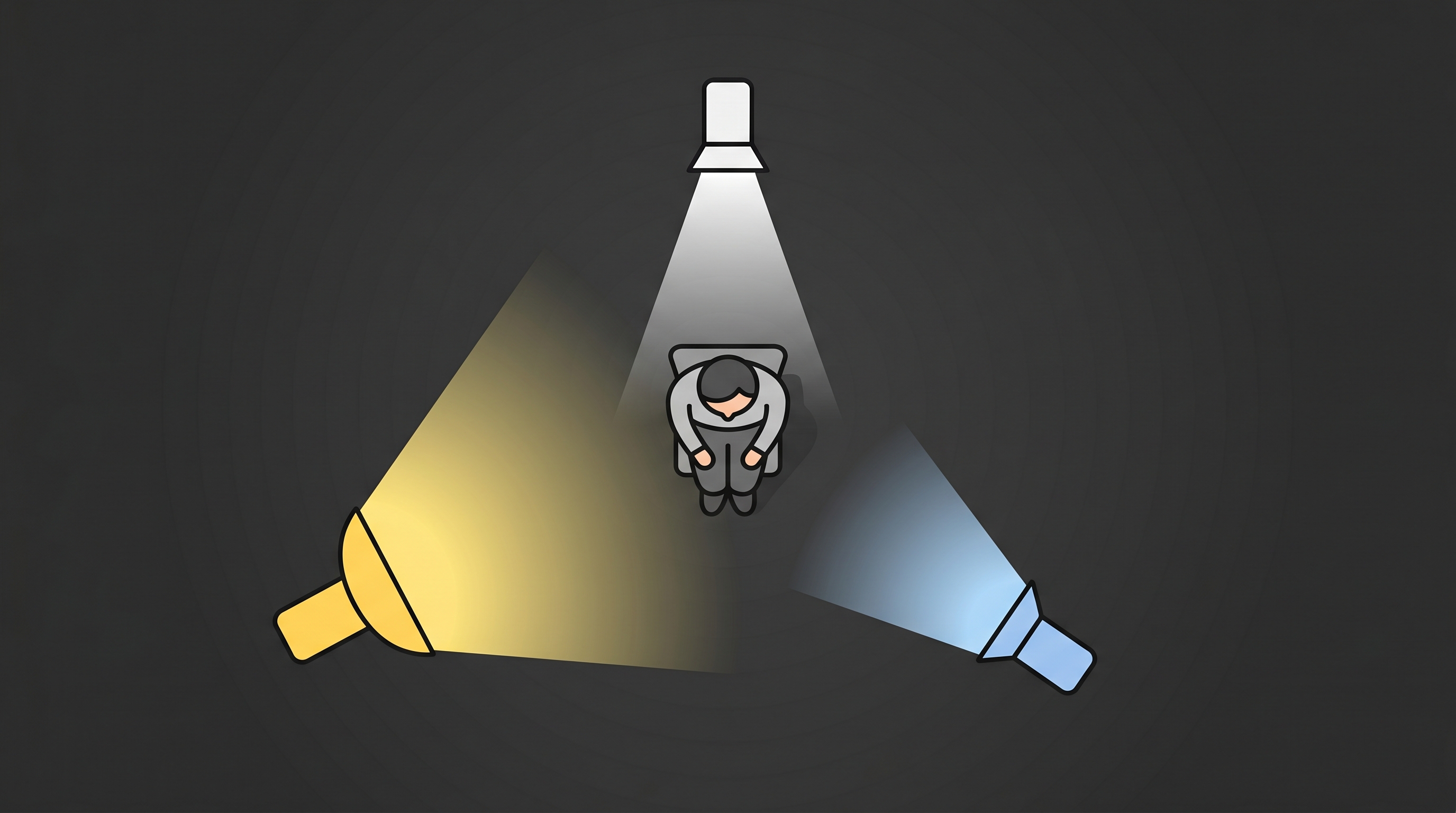

Putting It All Together: A Step-by-Step DIY Headshot Setup for Under $20

Here's your complete equipment list with approximate 2026 prices:

Step-by-step walkthrough:

1. Seat the subject 3 to 4 feet from a plain wall. This leaves room for the back light and prevents hard shadows from appearing on the wall behind them.
2. Position the key light (desk lamp with diffusion material in front) 45 degrees to one side and slightly above eye level.
3. Place the white foam board reflector on the opposite side, angling it to bounce light into the shadows on the face.
4. Clamp the back light to a high surface behind and above the subject, aimed at the back of their head and shoulders.
5. Turn off all overhead room lights and block any windows you aren't using as your key.
6. Take test shots and adjust. Move the fill board closer or farther to control the shadow depth. Raise or lower the key to adjust the nose shadow.

Camera settings for beginners: Smartphone portrait mode works well here because the lighting is doing the heavy work. If you're using a dedicated camera, shoot at f/2.8 to f/5.6, ISO 100 to 400, and adjust shutter speed until the exposure looks right on your screen.

Quick troubleshooting checklist:

• Skin looks orange? Color temperature mismatch between your lights. Make sure all bulbs are the same Kelvin rating.
• Dark eye sockets? Key light is too high. Lower it closer to eye level.
• Double shadows on the face? You have two competing key-strength lights. Dim the fill or move it farther away.
• Face looks flat? Your fill is too strong. Pull the reflector back to restore shadow contrast.
• Background too bright or too dark? Move the subject closer to or farther from the wall.

Common Lighting Mistakes That Ruin Skin Tones (and How to Fix Them)

Even with the right three-point setup, a few common errors can wreck your results. Here's what to watch for.

Mixed color temperatures are the most frequent culprit. The Kelvin scale runs from warm (2700K, the orange glow of old incandescent bulbs) through neutral daylight (4000K to 5000K) to cool blue (6500K+). When your key light is daylight-balanced and your fill is a warm tungsten lamp, the shadows take on a sickly green or magenta cast that's extremely difficult to fix in post-processing. Solution: match all your bulbs. Daylight-balanced LEDs (5000K) are cheap and widely available in 2026.

The "raccoon eyes" problem comes from overhead-only lighting. Standard ceiling fixtures and midday sun cast deep shadows in the eye sockets and under the nose and chin. Always turn off overhead room lights when shooting portraits. Your three-point setup should be the only source of illumination.

On-camera flash is another portrait killer. Direct flash from the camera position flattens the face, causes red-eye, and produces harsh specular highlights on oily skin. If you must use flash, bounce it off a ceiling or white wall. Better yet, stick with continuous lights so you can see exactly what the camera will capture.

Uncontrolled ambient light can compete with your setup and muddy the results. If your room has strong light coming from multiple windows, it can overpower your carefully placed key light. Shoot at night for maximum control, or block any windows you're not deliberately using.

When DIY Isn't Enough: Professional-Quality Headshots Without the Studio

Let's be honest. Even with perfect three-point lighting, getting a truly polished headshot means nailing focus, expression, posing, background, and post-processing all at once. That's a lot of variables, especially for a solo shoot.

The self-portrait challenge is real. It's nearly impossible to be both the photographer and the subject simultaneously. You can't adjust the lighting, check focus, and capture a relaxed, natural expression while sprinting back from the camera before the self-timer fires. Budget gear also has limitations: lower light output means higher ISO settings and more image noise, inconsistent color quality across cheap bulbs, and no precise modifiers to control light spill.

This is where AI headshot generation has become a practical alternative in 2026. Tools like Starkie AI use models trained on professional portrait lighting and posing to generate studio-quality headshots from your existing casual photos. No gear, no studio, no awkward self-timer dashes. You upload a few photos, and the AI handles flattering light direction, proper skin tone rendering, natural catchlights, and clean backgrounds.

Understanding three-point lighting actually makes you a better consumer of these tools, too. You can appreciate what the AI is optimizing for: the direction of shadows, the subtlety of the rim light, the balance of the fill. The knowledge is complementary.

For practical use cases like LinkedIn profile updates, acting portfolios, company team pages, and social media branding, where you need a polished result quickly and affordably, AI headshot generators can save hours of setup time while producing consistent, professional results. You can browse different headshot style packs to find the look that matches your needs.

Light It Up This Weekend

That 100-millisecond first impression is shaped more by lighting than any other single factor, and now you have the knowledge to control it. The framework is simple: key light for shape, fill light for balance, back light for separation. A $12 to $17 DIY setup using items you mostly already own can dramatically improve your portrait photography starting this weekend.

Grab a desk lamp, a foam board, and a clamp light. Experiment with angles. Move things closer and farther. Watch the shadows shift on the face. Once you see the difference that intentional lighting makes, you'll never go back to flat, overhead-lit snapshots.

And for those times when you want professional headshot results without the setup, Starkie AI generates studio-lit headshots from your existing photos in minutes. Whether you're behind the camera or letting AI handle it, great lighting is always the difference-maker.
